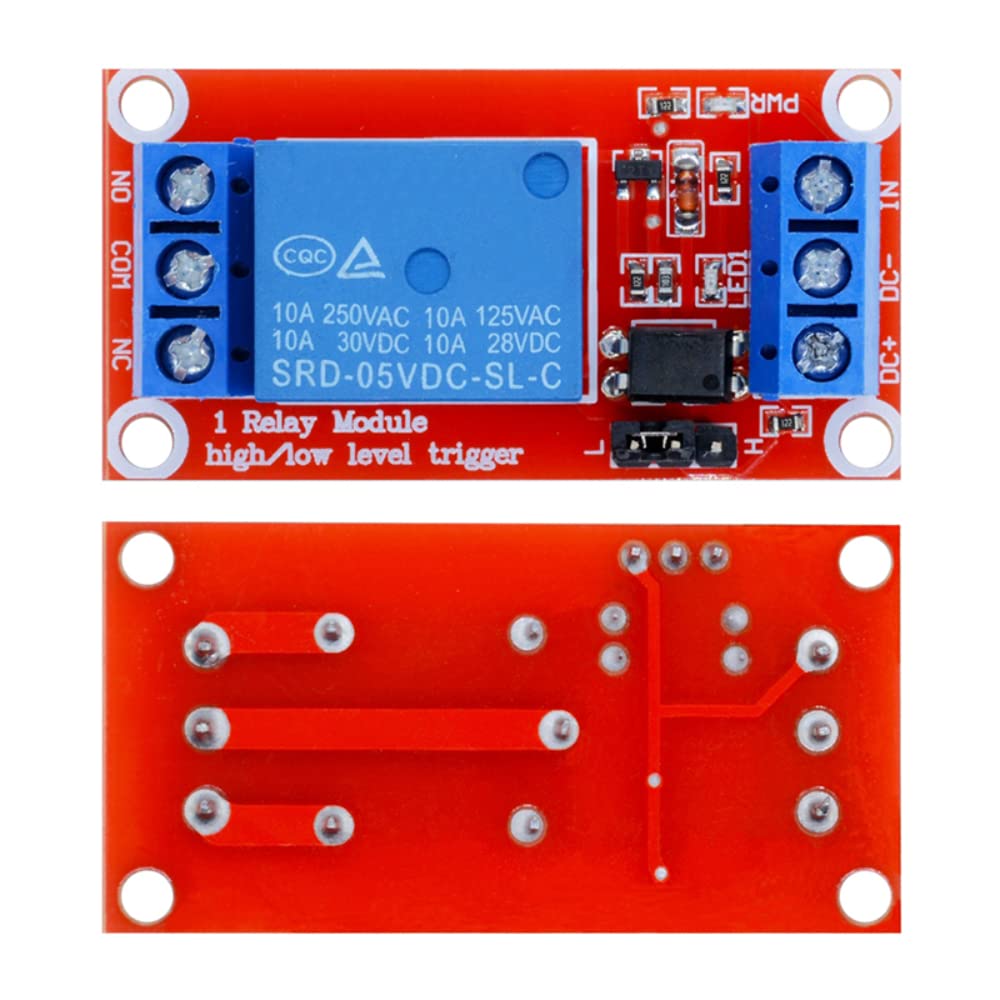

DollaTek5V 1-Channel Relay Module Board Shield with optocoupler Support High and Low Level Trigger
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5Thumbnail 6Thumbnail 7Thumbnail 8Thumbnail 9Thumbnail 10Thumbnail 11

DollaTek5V 1-Channel Relay Module Board Shield with optocoupler Support High and Low Level Trigger

4.3/5
Product ID: 75136320
Secure Transaction

Details

  • Connector type
    Through Hole
  • Contact material
    Silver
  • Contact type
    Normally Open
  • Current rating
    10 Amps
  • Mounting type
    Through Hole
10A max load power
🔄high/low level trigger
🔒optocoupler isolation
Frequently Bought Together

Description

⚡ Control with Confidence — Power, Precision, and Protection in One Module!

  • PLUG PLAY READY - Through-hole mount for quick, reliable integration without fuss
  • ROCK SOLID ISOLATION - SMD optocoupler ensures stable, noise-free operation
  • COMPACT LIGHTWEIGHT - Slim 50x26x18.5mm design fits seamlessly into any project
  • FLEXIBLE TRIGGER MODES - Easily switch between high and low level triggers with a jumper
  • POWERHOUSE PERFORMANCE - Handles up to 10A at AC 250V/DC 30V for heavy-duty control

The DollaTek 5V 1-Channel Relay Module features a genuine relay capable of switching loads up to 10A at AC 250V or DC 30V. It incorporates SMD optocoupler isolation for stable and noise-resistant performance, supports both high and low level trigger modes via jumper settings, and comes in a compact 50x26x18.5mm form factor ideal for seamless integration in electronic projects.

Specifications

ManufacturerDollaTek
Item Weight20 g
Package Dimensions9.5 x 7.1 x 1.8 cm; 20 g
Item Package Quantity1
Plug profileThrough Hole Mount
Batteries included?No
Batteries Required?No

Reviews

4.3

All from verified purchases

H**N

Very good

Now these worked a treat

G**E

It's pretty good

Works flawlessly with 5V from an Arduino Uno.Unfortunately doesn't trigger consistently with 3.3V from an ESP8266, but I can't knock it for that since it never claimed to, just pure hope on my part. It's pretty well made and the screw terminals are a nice touch, much better than straight pins.

D**L

Not reliable

Out of the box I wired it to the Konnected alarm board relay output. It works randomly and it tends to get stuck in the NC position from time to time. I had to ask for refund

P**E

Relay worked on the C axis of my NVEM v2 controller

Relay worked on the C axis of my NVEM v2 controller
